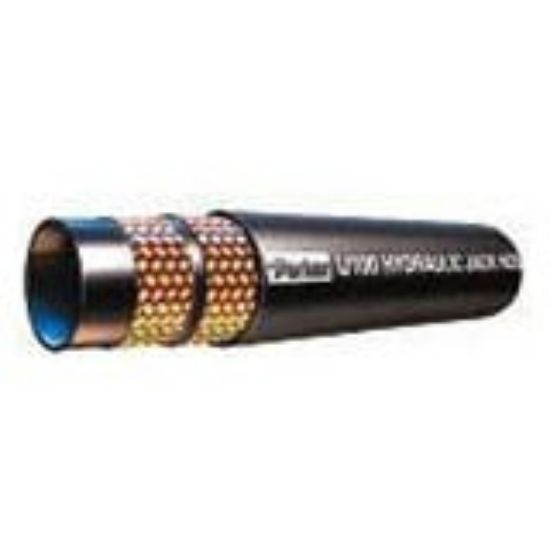

Picture of Hydraulic Industry Standard Jack Hose 10000-10500 PSI – JK Hose - JK-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Industry Standard Jack Hose 10000-10500 PSI – JK Hose - JK-4

Parker's JK hose is a hydraulic industry standard jack hose that has a pressure range of 10000-10500 PSI, with exceptional hydraulic fluid compatibility.
Availability:
Backordered
SKU JK-4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-4Maximum Operating Temperature120
DivisionHose Products DivisionMinimum Operating Temperature-40
Minimum Bend Radius4Weight0.39
Inside Diameter1/4Cover MaterialSynthetic Rubber
Hose Cover TypeStandard CoverCompatible Fitting43 Series
Hose Inner Tube MaterialSynthetic RubberHose Reinforcement Material2 Braids of Steel Wire
ApplicationLubricating OilsMediaLubricants
Specifications MetEN 853, Type 2SNNominal Hose Inside Diameter6
Outside Diameter0.590Maximum Operating Pressure10500
Product resources

Literature and Reference Materials
