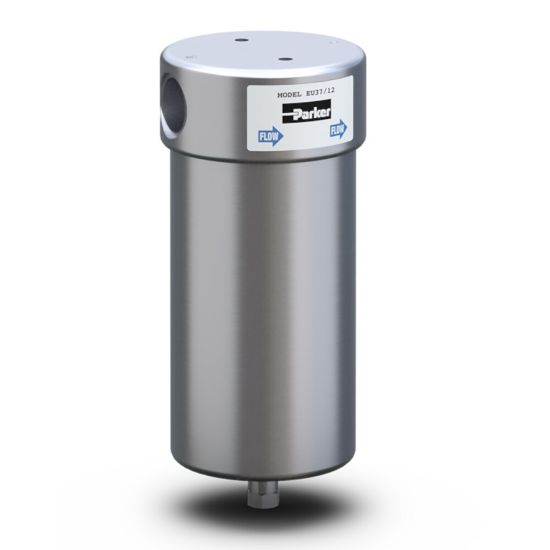

Picture of Hydrogen Gas Filters - High Pressure / Medium Flow - (¼" to 2") - EU37/12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydrogen Gas Filters - High Pressure / Medium Flow - (¼" to 2") - EU37/12

Maximum operating pressures differ between port sizes, with a maximum pressure rating of 345 barg available. Typically, industry application requirements are for filtration grades of 1 micron.
Availability:
Backordered
SKU EU37/12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate19182 m³/h @ max. pressureMaximum Operating Pressure276 barg (4003 psig)
DivisionGas Separation and Filtration Division EMEAPort Size½"
Connection TypeNPTApplicationFuel cells<br/>Power generation<br/>Petroleum refinement<br/>Metal treatment<br/>Fertilizer/chemical production<br/>Food processing
BrandPARKERTechnologyFiltration
Product TypeCoalescing and Dry ParticulateHeight157 mm (6.2 inch)
Weight2.7 kg (5.9 lbs)Filter TypeHydrogen
Product SeriesHydrogen Gas Filters - High Pressure / Medium Flow - (¼" to 2")Operating Temperature150°C (302°F)
Width70 mm (2.8 inch)DivisionGas Separation and Filtration Division EMEA
