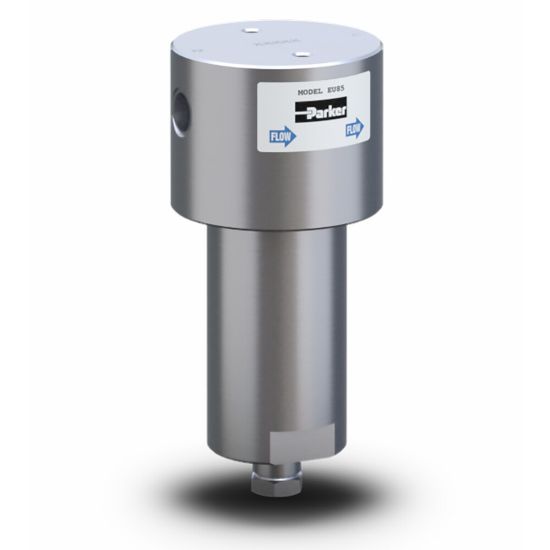

Picture of Hydrogen Gas Filters - High Pressure / Medium Flow - (¼" to 2") - EU85

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydrogen Gas Filters - High Pressure / Medium Flow - (¼" to 2") - EU85

Maximum operating pressures differ between port sizes, with a maximum pressure rating of 345 barg available. Typically, industry application requirements are for filtration grades of 1 micron.
Availability:
Backordered
SKU EU85
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate11443 m³/h @ max. pressureMaximum Operating Pressure345 barg (5003 psig)
Product TypeCoalescing and Dry ParticulateConnection TypeNPT
Width64 mm (2.5 inch)Port Size¼"
DivisionGas Separation and Filtration Division EMEAFilter TypeHydrogen
BrandPARKERApplicationFuel cells<br/>Power generation<br/>Petroleum refinement<br/>Metal treatment<br/>Fertilizer/chemical production<br/>Food processing
DivisionGas Separation and Filtration Division EMEAHeight127 mm (5 inch)
Product SeriesHydrogen Gas Filters - High Pressure / Medium Flow - (¼" to 2")TechnologyFiltration
Operating Temperature150°C (302°F)Weight1.8 kg (3.9 lbs)
Product resources

Literature and Reference Materials
