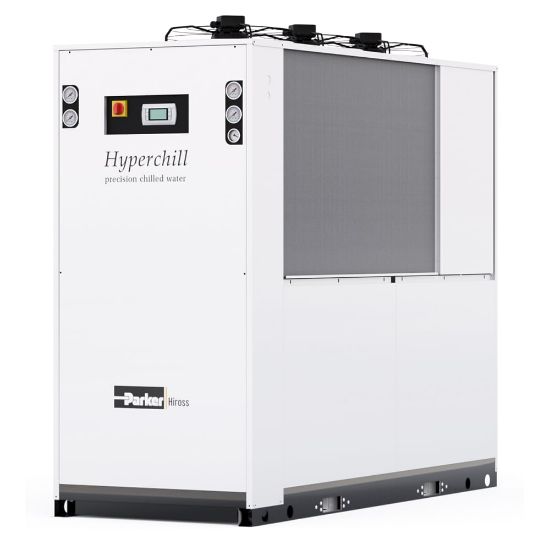

Picture of Hyperchill - Industrial Process Chillers for Precision Cooling - ICE076A4003501P30NF000000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hyperchill - Industrial Process Chillers for Precision Cooling - ICE076A4003501P30NF000000

Chillers designed to provide precise and accurate temperature control for a wide variety of industrial applications, with cooling capacities from 76 kW to 360 kW @ 25°C ambient temperature.
Availability:
Backordered
SKU ICE076A4003501P30NF000000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cooling MethodAir Cooled / Axial FansWater Sensor OptionNo Low Water
Power Supply Voltage400V/3Ph/50HzMaximum Cooling Capacity76.0 kW @ 25°C (63°F)
Additional Protection IncludedWithout AntifreezePump TypeSingle Pump 3 bar
Operating EnvironmentNo Low AmbientOutput Water Temperature RangeWithout Close Control
Hydraulic CircuitNon FerrousBrandPARKER
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Port Size2 inchIngress Protection RatingIP54
Refrigerant TypeR407cWeight800 kg
Product TypeProduction Process Water ChillerTechnologyThermal and Power Management
Number of Axial Fans3Depth86.6 inch
Height1984 mmNoise Level58 dBA
Width59.1 inchIndustryPlastics
Port TypeThreadedProduct StyleOpen Hydraulic Circuit
Specifications MetElectromagnetic Directive 2004/108/ECApplicationPrecision Cooling of Low Viscosity Industrial Cooling Fluids
Tank Capacity500 LProduct SeriesHyperchill
Compressor IncludedHermetic Scroll Compressor
