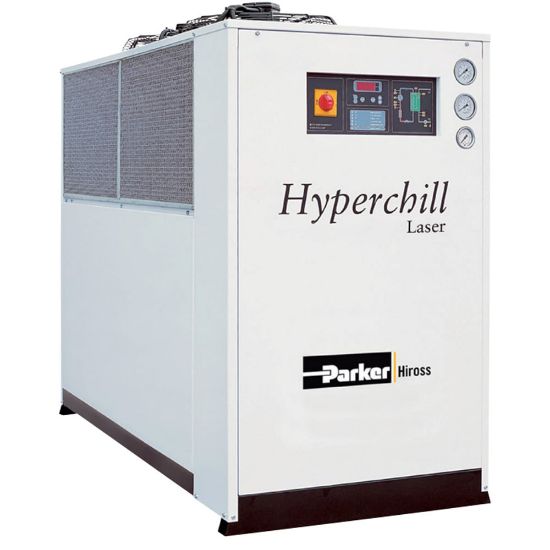

Picture of Hyperchill Laser Industrial Process Chiller for Precision Cooling - HLS116A4003501P000SSCLA000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hyperchill Laser Industrial Process Chiller for Precision Cooling - HLS116A4003501P000SSCLA000

This product is no longer available, please refer to Hyperchill Plus-E 50Hz Range instead.
Availability:
Backordered
SKU HLS116A4003501P000SSCLA000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hydraulic CircuitStainless Steel With TankWater Sensor OptionNo Low Water
Pump TypeNo PumpOutput Water Temperature RangeClose Control +/- 0.5°C
Power Supply Voltage400V/3Ph/50HzOperating EnvironmentLow Ambient -10°C (Fan Step Control)
Additional Protection IncludedWithout AntifreezeCooling MethodAir Cooled / Axial Fans
Maximum Cooling Capacity115.5 kW @ 25°C (63°F)Ambient Temperature45 °C (max.)
Height1984Number of Axial Fans3
Depth2200Refrigerant TypeR407c
TechnologyThermal and Power ManagementProduct TypeProduction Process Water Chiller
BrandHirossTank Capacity300
Port TypeBSPPWeight1000
Width898Compressor IncludedHermetic Scroll
DivisionGas Separation and Filtration Division EMEANoise Level58
Ingress Protection RatingIP54Product SeriesHyperchill Laser
For Fluid TypeWaterPort Size2
ApplicationPrecision Cooling of Low Viscosity Industrial Cooling Fluids for Laser Marking, Cutting and WeldingSpecifications MetPED 97/23/EC
Operating Temperature5 to 30Product StylePressurized Closed Hydraulic Circuit
IndustryLaser and MetalDivisionGas Separation and Filtration Division EMEA
