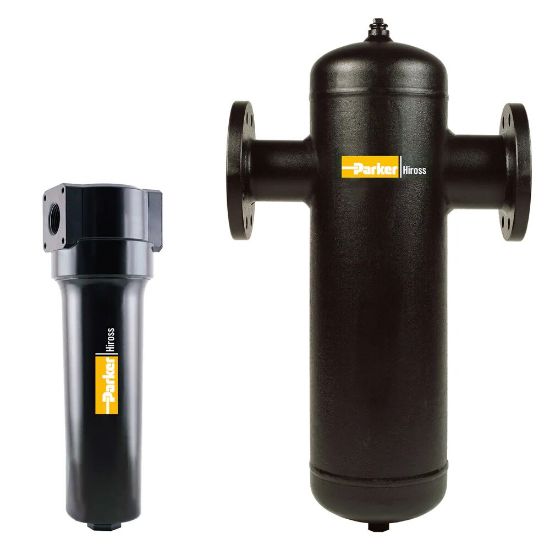

Picture of Hypersep STH, SFH and SFV Series Centrifugal Water Separator (for pressures up to 16 barg) - SFH088A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hypersep STH, SFH and SFV Series Centrifugal Water Separator (for pressures up to 16 barg) - SFH088A

PED approved centrifugal water separators with low pressure drop for the removal of bulk condensate water from compressed air for industrial applications.
Availability:
Backordered
SKU SFH088A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Materials of ConstructionHousing: Stainless Steel, Seals: FASIT 50Connection TypeHorizontal Flanged DIN EN 1092-1
Port SizeDN 150Operating PressureMaximum: 16 barg
Flow Rate5304 m³/h @ 7 barg (3122 cfm @ 102 psig)Micron Ratingn/a
Product TypeCompressed Air FilterTechnologyFiltration
Operating Temperature41 to 122 °FDivisionGas Separation and Filtration Division EMEA
Specifications MetPED, others on request (GOST, ASME, SELO)Filter TypeWater Separator
IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalApplicationCompressed Air and Nitrogen Gas Applications
Product SeriesHypersep STH and SFH (Up to 16 barg)Compatible ElementNot Applicable
DivisionGas Separation and Filtration Division EMEAHeight1060.0 mm
Width570.0 mmBrandPARKER
