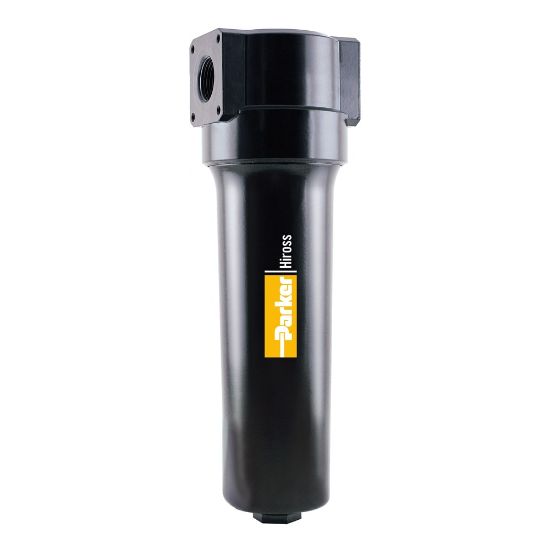

Picture of Hypersep STH & SFH series high pressure centrifugal water separator (For pressures up to 40 barg) - STH001P

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hypersep STH & SFH series high pressure centrifugal water separator (For pressures up to 40 barg) - STH001P

PED approved centrifugal high pressure water separators with low pressure drop for the removal of bulk condensate water from compressed air in industrial applications.
Availability:
Backordered
SKU STH001P
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size¾"Connection TypeBSPT
Maximum Flow Rate (m³/h)54 m³/hr @ 7 barg (32 cfm @ 102 psig)Materials of ConstructionHousing: Aluminium, Seals: FASIT 50
Specifications MetPED, others on request (GOST, ASME, SELO)Filter TypeWater Separator
Width148.0 mmWeight4.5 kg
IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalApplicationCompressed Air and Nitrogen Gas Applications
DivisionGas Separation and Filtration Division EMEACompatible ElementNot Applicable
BrandPARKEROperating Temperature5 to 50 °C
Micron Ratingn/aProduct TypeCompressed Air Filter
TechnologyFiltrationProduct SeriesHypersep STH and SFH (40 bar)
Height11 inchDivisionGas Separation and Filtration Division EMEA
Product resources

Literature and Reference Materials
