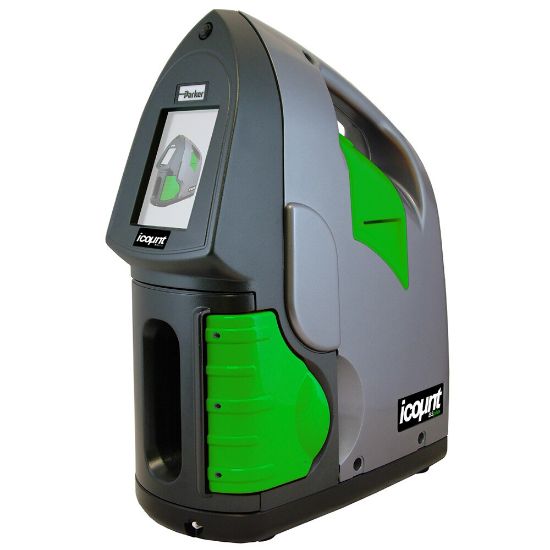

IcountBSwg - Bottle Sampler for Water Glycols - IBS4101

Name: IcountBSwg - Bottle Sampler for Water Glycols - IBS4101
SKU: IBS4101

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU IBS4101

POR

Qty:

Products specifications

Attribute name	Attribute value
Options	No de-gas kit	Industry	Oil and Gas
Product Type	Condition Monitor	Operating Temperature	50 to 104 °F
Weight	18 kg	Accuracy	< 7 %
Calibration Type	MTD	Flow Rate	60 L/min
Maximum Fluid Temperature	n/a	Width	210 mm
For Fluid Type	Pelagic 100 and Haughton Aqualink 300F	Division	Hydraulic & Industrial Process Filtration Division EMEA
Sensing Method	Relative Humidity	Operating Humidity	2 to 80% RH
Height	530 mm	Port Size	n/a
Specifications Met	CE Certification	Maximum Operating Temperature	30 °C
Minimum Fluid Temperature	n/a	Brand	PARKER
Options	No De-gas Kit	Seal Material	Fluoroelastomer
Division	Hydraulic & Industrial Process Filtration Division EMEA	Communication Interface	USB Port
Electrical Requirements	110 to 240 VAC	Technology	Hydraulics
Body Material	Stainless Steel	Product Style	Particle Detector/Counter
Operating Pressure	44 psi	Length	410 mm
Cycle Time	< 5 min	Static Memory Option	500
Port Type	N/A

Product resources

Compliance, Certifications & Safety

SAFETY-iCountBS-Declaration-of-Conformity (PDF)

Literature and Reference Materials

BROCHURE-icountBSplus-Bottle-Sampler-for-Water-Glycol (PDF)
