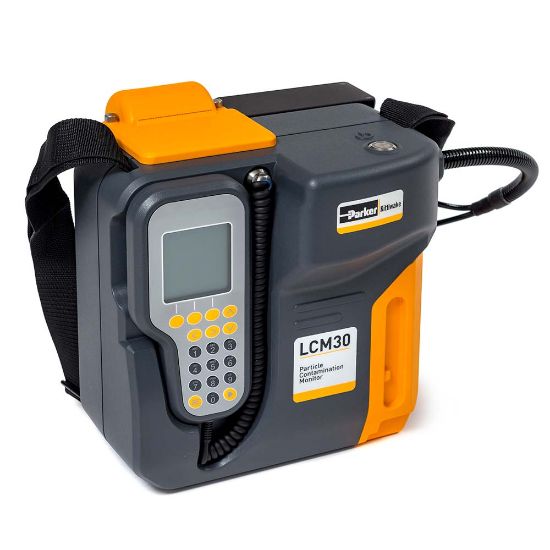

Picture of icountLaserCM30 - Portable Particle Monitor - ACM302024

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

icountLaserCM30 - Portable Particle Monitor - ACM302024

The Parker icountLCM30 is a next generation fluid system contamination monitor offering an under 90 second test procedure that reports particle micron size and distribution.
Availability:
Backordered
SKU ACM302024
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
OptionsStandardSeal MaterialFluorocarbon
Product TypeCondition MonitorFor Fluid TypeMineral-based Oils and Petroleum-based Fuel
Calibration TypeMTD calibratedElectrical ConnectionUK-EU-US
BrandPARKERPort TypeMetric
Body MaterialStainless SteelDivisionHydraulic & Industrial Process Filtration Division EMEA
DivisionHydraulic & Industrial Process Filtration Division EMEATechnologyHydraulics
Product TypeCondition MonitorSpecifications MetCE Certification
ApplicationHarvestersAccuracy< 7 %
Port SizeM16Product StyleParticle Detector/Counter
Sensing MethodLaserMaximum Fluid Temperature176 °F
Width206 mmHeight281 mm
Length291 mmWeight7.5 kg
IndustryIndustrial & Chemical ProcessingFlow Rate< 400 L/min
Cycle Time< 90 seconds in both single and multi-test mode.Operating Humidity(%RH) ±5% RH
Operating Pressure2 to 420 barOperating Temperature+41 to +104 °F
Communication InterfaceUSB-A to B PortElectrical Requirements110 to 240 VAC
Ingress Protection RatingIP54Minimum Fluid Temperature41 °F
Signal OutputDisplay
