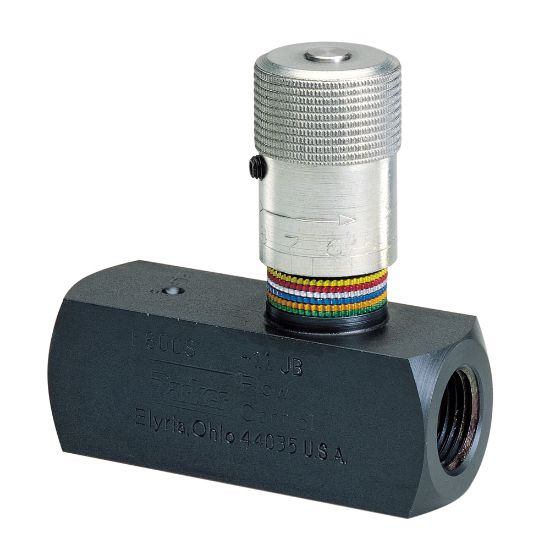

Picture of In-line Flow Control Valve – F Series - 9F1200B-V

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

In-line Flow Control Valve – F Series - 9F1200B-V

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.
Availability:
Backordered
SKU 9F1200B-V
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBRASSConnection Size3/4"
Seal MaterialFluorocarbonCracking Pressure (psi)5
Connection TypeBSPPFunctionFlow Control
ConfigurationInLineActuation TypeManual
Maximum Operating Temperature+400Minimum Operating Temperature-15
NeedleStandardKnob OptionStandard
Poppet StyleMetalMaximum Flow Rate25
Maximum Operating Pressure (psi)2000Body MaterialBrass
Flow Raten/aMaximum Operating Temperature400 °F
Seal MaterialFluorocarbonDivisionHydraulic Valve Systems Division
Minimum Operating Temperature-15 °FConnection Size3/4 inch
Maximum Operating Pressure2000 psiActuation TypeManual
Connection TypeFemale to FemaleBrandColorflow
MediaOilFunctionFlow Control
ConfigurationInlineMaximum Flow Rate95 L/min
