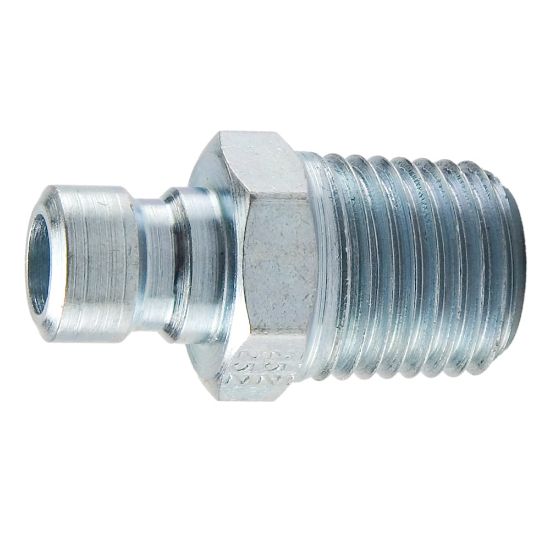

Picture of Injection Molding, Coolant Quick Couplings - Moldmate Series - PN253S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Injection Molding, Coolant Quick Couplings - Moldmate Series - PN253S

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.
Availability:
Backordered
SKU PN253S
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection Thread Size (inch)3/8 - 18Body MaterialSteel
Coupling HalfMale NippleBody Size (inch)1/4
Flow Rate3Connection TypeMale NPTF
Valve StyleUnvalvedConnection Hose I.D. (inch)na
Hex Size0.69Maximum Operating Pressure200
Plating TypeZinc with clear trivalent chromateSeal Materialna
ApplicationHydraulic, mold coolantProduct TypeManual Connect
DivisionQuick Coupling DivisionMinimum Operating Temperature-20
Maximum Operating Temperature400
