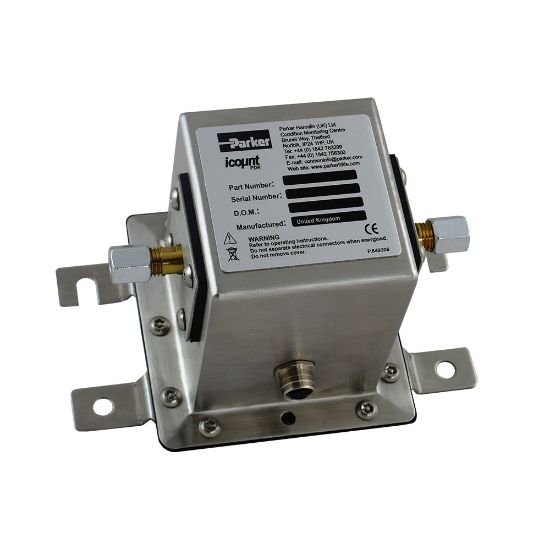

Inline Particle Monitor – iCountPD - IPDR12112110

Name: Inline Particle Monitor – iCountPD - IPDR12112110
SKU: IPDR12112110

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Availability:

Backordered

SKU IPDR12112110

POR

Qty:

Products specifications

Attribute name	Attribute value
Options	n/a	Housing Material	Stainless Steel
Port Type	Deutsch DT Series	Signal Output	4 to 20 mA
For Fluid Type	Mineral Oil	ATEX Specifications Met	n/a
Indicator Type	No Display on unit	Limit Alarm Relay Included	No
Brand	PARKER	Technology	Filtration
Body Material	Brass	Materials of Construction	Stainless Steel
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Seal Material	Fluorocarbon	Ingress Protection Rating	IP69K
Product Type	Condition Monitor	Specifications Met	CE Certification
Communication Interface	RS232	Flow Rate	60
Minimum Fluid Temperature	5	Product Style	Particle Detector/Counter
Sensing Method	Laser	Industry	Industrial & Chemical Processing
Weight	1.9	Maximum Fluid Temperature	80
Cycle Time	30	Signal Output	4 to 20
For Fluid Type	Mineral oils and petroleum based fluids	Operating Pressure	30 to 6000
Operating Temperature	5 to 60	Accuracy	+/- 1 ISO code
Operating Humidity	5 to 100% (RH)	Electrical Requirements	9 to 40
Width	115	Height	114
Length	135	Port Size	06L EO 24° cone
Port Type	24° Cone EO compression
