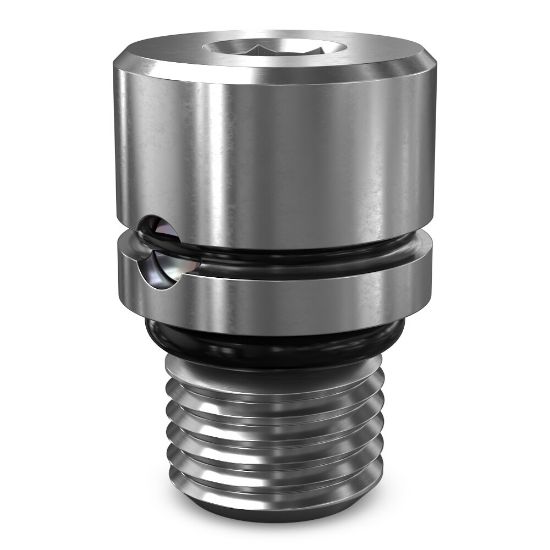

Insert Check Valves - CVH021

Name: Insert Check Valves - CVH021
SKU: CVH021

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Availability:

Backordered

SKU CVH021

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	1 GAL/MIN, 3.8 L/MIN	Cracking Pressure	0 PSI, 0 BAR
Connection Size	n/a	Connection Type	n/a
Maximum Operating Temperature	400 °F	Weight	0.04 lb
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Operating Temperature	-26 to 204 °C	Division	Hydraulic Systems Division
Valve Material	Steel	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Cavity Size	n/a	Maximum Operating Pressure	350 bar
Actuation Type	Pressure Sensing	Operation Type	Automatic
Leak Rate	n/a	Maximum Inlet Pressure Rating	350 bar
Maximum Flow Rate	1 Gal/min	Flow Rate	3.8 L/min
Mounting Type	Inside Manifolds	Function	Sense Check
Flow Direction	2-1 Checked	Cracking Pressure	0 psi
Configuration	Insert
