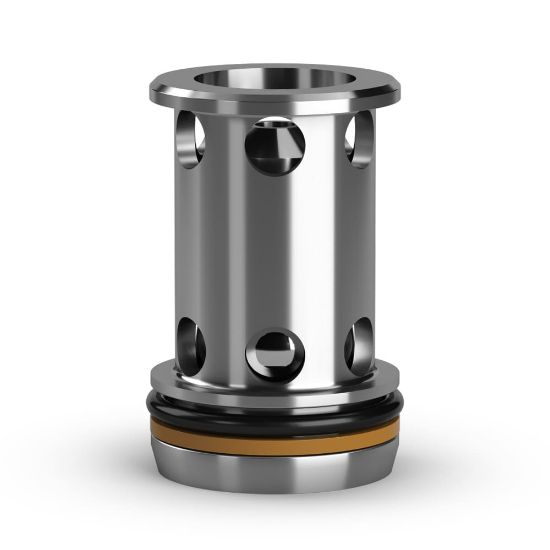

Insert Check Valves - D1A060-5.0V

Name: Insert Check Valves - D1A060-5.0V
SKU: D1A060-5.0V

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Availability:

Backordered

SKU D1A060-5.0V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	38 GAL/MIN, 145 L/MIN	Cracking Pressure	72 PSI, 5 BAR
Connection Size	n/a	Connection Type	n/a
Maximum Operating Temperature	400 °F	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Operating Temperature	-15 to 400 °F
Valve Material	Steel (all parts)	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Weight	0.19 lb	Maximum Operating Pressure	420 bar
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Maximum Inlet Pressure Rating	6000 psi
Mounting Type	Inside Manifolds	Flow Direction	2-1 Checked
Configuration	Insert	Flow Rate	145 L/min
Maximum Flow Rate	38 Gal/min	Function	Check
Leak Rate	3 drops/min	Cavity Size	2U
Cracking Pressure	72 psi
