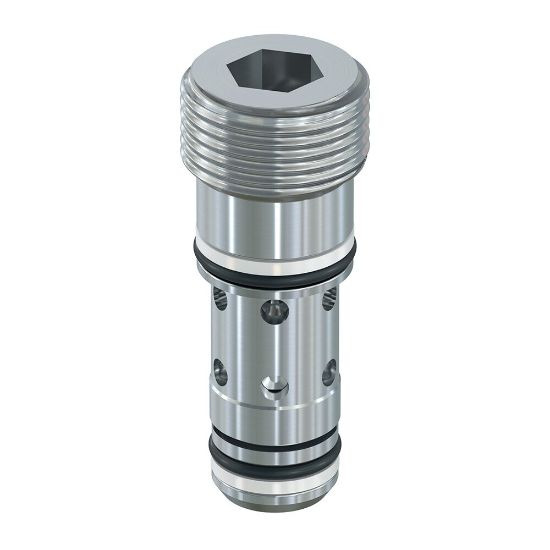

Picture of Insert Shuttle Valves - K2A005N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Insert Shuttle Valves - K2A005N

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).
Availability:
Backordered
SKU K2A005N
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileFlow Rate10 GAL/MIN, 38 L/MIN
Flow Rate38 L/minMaximum Flow Rate38 L/min
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Valve MaterialAll parts steel. All operating parts hardened steel
FunctionShuttleMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
ConfigurationInsertInstallation Torque10 Nm
For Fluid TypeMineral-based or synthetic hydraulic fluidsLeak Rate10 @ 5000 PSI (350 BAR) drops/min
Operation TypeAutomaticMaximum Inlet Pressure Rating350 bar
DivisionHydraulic Cartridge Systems DivisionDivisionMobile Hydraulic Systems Division Europe
Maximum Operating Pressure350 barCavity Size3Z
Body Materialn/aOperating Temperature-30 to +250 °F
Weight.02 kgMinimum Operating Temperature-34 °C
Maximum Operating Temperature+121 °CSeal MaterialNitrile
Actuation TypePressure Sensing
