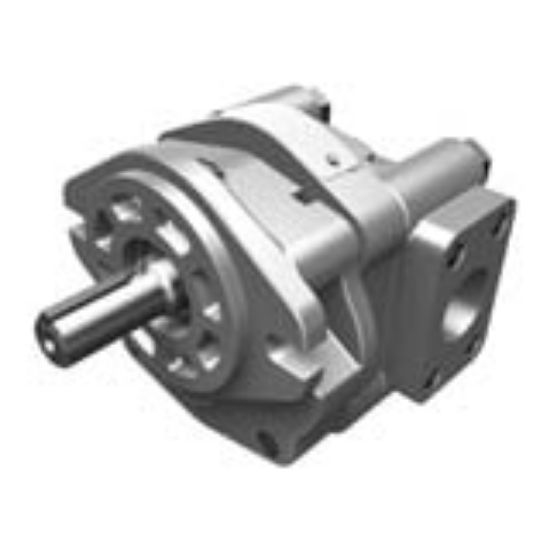

Iron and Aluminum Pumps - P16 Series - P16 SERIES PUMPS

Name: Iron and Aluminum Pumps - P16 Series - P16 SERIES PUMPS
SKU: P16 SERIES PUMPS

The Iron and Aluminum Pump P16 Series fixed displacement gear pump offers high performance and high power density due to its part aluminum construction.

Availability:

Backordered

SKU P16 SERIES PUMPS

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Connection	BSPP	Port Type	Straight Threaded
Configuration	Tandem	Minimum Kinematic Viscosity	50
Control Method	n/a	Charge Pump Included	No
Filter Included	No	Direction of Rotation	Counterclockwise
Circuit Path	Open	Drain Option	No
Maximum Displacement	64	Maximum Fluid Temperature	80
Maximum Operating Speed	3600	Thru-Drive Capability	No
Pump Type	Gear	Weight	9.1
Energy Recovery Capability	No	Mounting Option	SAE
Shaft Type	SAE	ConfiguratorModelID	P16
Radial Load Capacity	Consult Parker	ConfiguratorType	Algroeconfigurator
Minimum Fluid Temperature	-20	Operating Pressure	up to 3000
Maximum Flow Rate	n/a	Flow Rate	n/a
For Fluid Type	Phosphate-ester	Maximum Operating Pressure	207
Body Material	Aluminum/Cast Iron Body	Port Location	Rear Ports
Media	n/a	Displacement	up to 64
Sensor Type	n/a	Maximum Noise Level	n/a
Division	Pump & Motor Division	Maximum Kinematic Viscosity	7500
