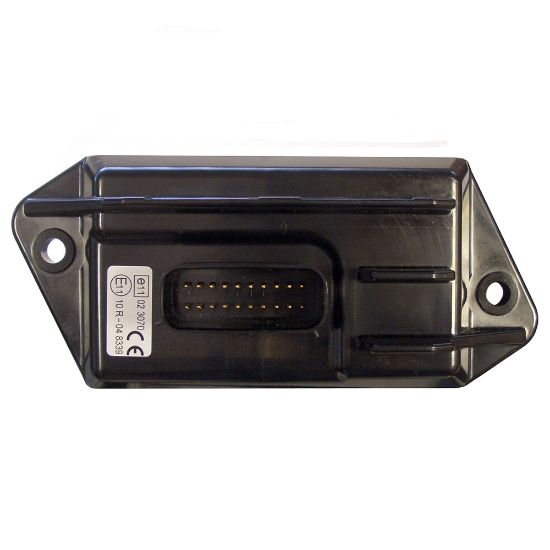

Picture of J1939 Slave Controller Module - CM0410 - 1014001ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

J1939 Slave Controller Module - CM0410 - 1014001ECD

Parker's CM0410 controller module is a compact J1939 slave unit that features configurable I/O using a supplied PC tool. The CM0410 module reports input status and receives output commands from a master using J1939 protocol over a CAN bus connection.
Availability:
Backordered
SKU 1014001ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberCM0410 J1939 slaveMinimum Operating Temperature-40 °C
DivisionElectronic Motion and Controls DivisionMaximum Operating Temperature85 °C
IndustryTransportationHousing MaterialPlastic
Number of Outputs10Specifications Met2004/108/EC
Communication Interface1x CAN (J1939)Power Supply Voltage24 V
Electrical ConnectionMolex MX150SoftwarePreconfigured
Controller TypeSlave/Expansion ModuleNumber of Inputs4
Output Current Rating2 AIngress Protection Rating69K
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
