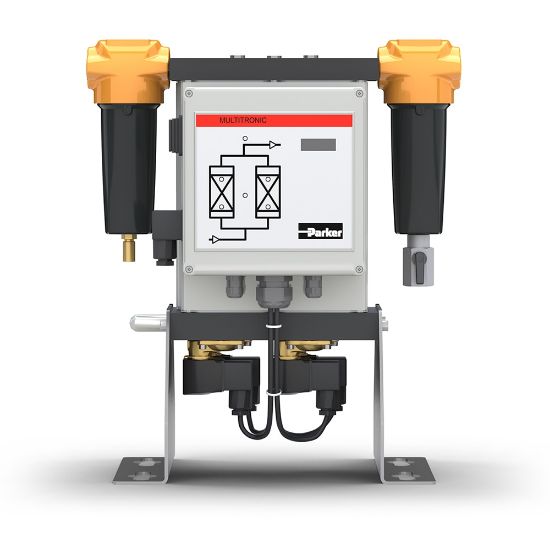

Picture of K-MT 1-8 Series Heatless Compressed Air Dryer - K3/16D3-G230MT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

K-MT 1-8 Series Heatless Compressed Air Dryer - K3/16D3-G230MT

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).
Availability:
Backordered
SKU K3/16D3-G230MT
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate25 m³/h @7 barg (15 cfm @102 psig)Optional AccessoriesPre-installed Dew Point Sensor
Port Size¼ inchElectrical Requirements230V 1ph 50/60Hz
Pressure Dew PointStandard: -40°C (-40°F)<br/>Height828.0 mm
ISO GradeStandard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental
Noise Level65 to 86 dBABrandPARKER
DivisionGas Separation and Filtration Division EMEAOperating Pressure4 to 16 barg
Ambient Temperature122.0 °F MaximumIngress Protection RatingIP65 Indoor and Frost Free Installation Only
DivisionGas Separation and Filtration Division EMEASpecifications MetPED 2014/68/EU Fluid Group II
Operating Temperature41 to 122 °FConnection TypeBSPP
TechnologyFiltrationProduct TypeCompressed Air Dryer
Product SeriesK-MT 1-8Product StyleHeatless
Depth8 inchWidth14 inch
