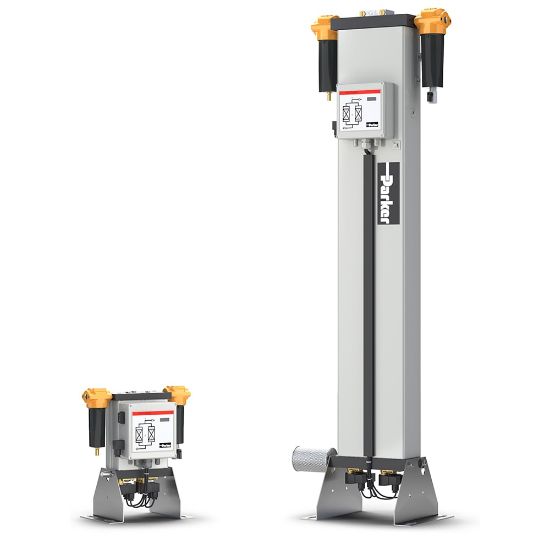

K-MT 1-8 Series Heatless Compressed Air Dryer - K3/16D3-N115M

Name: K-MT 1-8 Series Heatless Compressed Air Dryer - K3/16D3-N115M
SKU: K3/16D3-N115M

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).

Availability:

Backordered

SKU K3/16D3-N115M

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Size	¼ inch	Flow Rate	25 m³/h @7 barg (15 cfm @102 psig)
Electrical Requirements	115V 1ph 50/60Hz	Optional Accessories	None
ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1	Product Series	K-MT 1-8
Operating Pressure	58 to 232 psig	Product Type	Compressed Air Dryer
Width	345.0 mm	Ambient Temperature	50.0 °C Maximum
Operating Temperature	5 to 50 °C	Pressure Dew Point	Standard: -40°C (-40°F)<br/>
Technology	Filtration	Depth	210.0 mm
Division	Gas Separation and Filtration Division EMEA	Noise Level	65 to 86 dBA
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental	Brand	PARKER
Division	Gas Separation and Filtration Division EMEA	Product Style	Heatless
Height	33 inch	Specifications Met	PED 2014/68/EU Fluid Group II
Connection Type	BSPP	Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only
