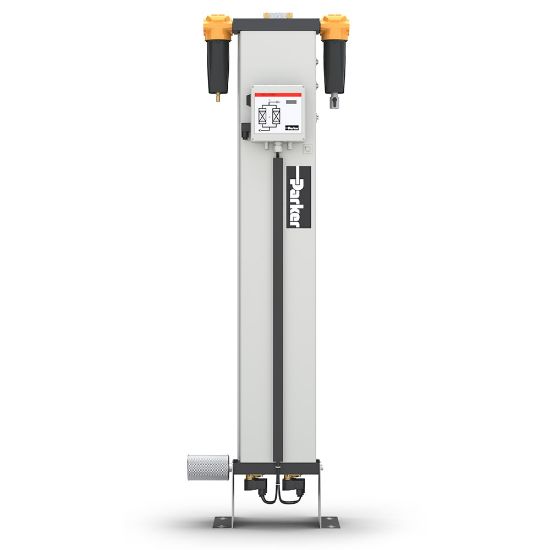

K-MT 1-8 Series Heatless Compressed Air Dryer - K8/16D3-G230MT

Name: K-MT 1-8 Series Heatless Compressed Air Dryer - K8/16D3-G230MT
SKU: K8/16D3-G230MT

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).

Availability:

Backordered

SKU K8/16D3-G230MT

POR

Qty:

Products specifications

Attribute name	Attribute value
Electrical Requirements	230V 1ph 50/60Hz	Flow Rate	86 m³/h @7 barg (51 cfm @102 psig)
Optional Accessories	Pre-installed Dew Point Sensor	Port Size	¾ inch
Product Style	Heatless	Division	Gas Separation and Filtration Division EMEA
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Specifications Met	PED 2014/68/EU Fluid Group II
Width	18 inch	Operating Temperature	41 to 122 °F
Connection Type	BSPP	Depth	300.0 mm
Ambient Temperature	50.0 °C Maximum	ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1
Product Type	Compressed Air Dryer	Product Series	K-MT 1-8
Pressure Dew Point	Standard: -40°C (-40°F)<br/>	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental
Technology	Filtration	Brand	PARKER
Operating Pressure	4 to 16 barg	Noise Level	65 to 86 dBA
Division	Gas Separation and Filtration Division EMEA	Height	53 inch
