Picture of KA-MT 1-8 Series Compressed Air Adsorption Dryer With Activated Carbon Stage - K1/16DA3-G115DMT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

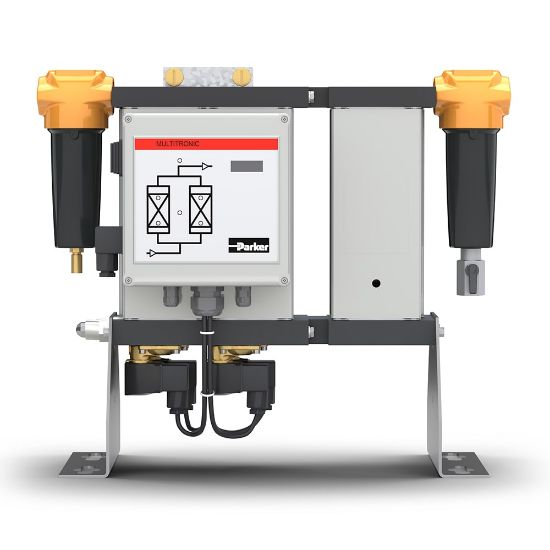

KA-MT 1-8 Series Compressed Air Adsorption Dryer With Activated Carbon Stage - K1/16DA3-G115DMT

Compact, heatless compressed air adsorption dryers with oil vapour removal for industrial requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options available).
Availability:
Backordered
SKU K1/16DA3-G115DMT
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size¼ inchElectrical Requirements230V 1ph 50/60Hz
Flow Rate8 m³/h @7 barg (5 cfm @102 psig)Optional AccessoriesPre-installed Dew Point Sensor
BrandPARKERTechnologyFiltration
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Connection TypeBSPPSpecifications MetPED 2014/68/EU Fluid Group II
Weight15ApplicationCompressed Air Applications
Product TypeCompressed Air DryerPressure Dew PointStandard: -40°C (-40°F)<br/>
Ambient Temperature50.0 °C MaximumIndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Operating Pressure4 to 16Operating Temperature5 to 50
Product SeriesKA-MT 1-8Product StyleHeatless with Activated Carbon Stage
Depth210.0Width486.0
Height403.0ISO GradeStandard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1
Noise Level65 to 86Ingress Protection RatingIP65 Indoor and Frost Free Installation Only
