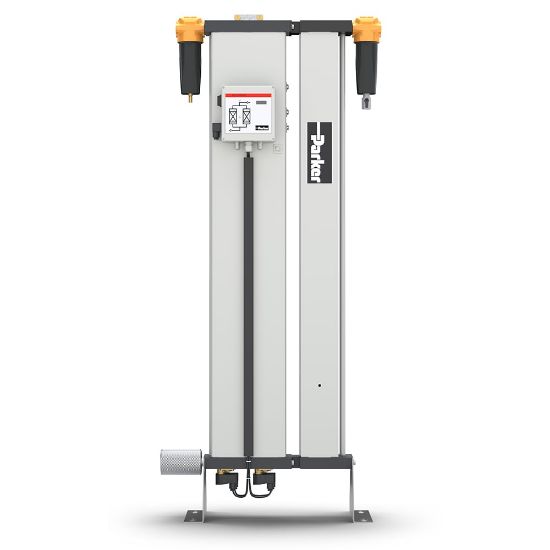

Picture of KA-MT 1-8 Series Compressed Air Adsorption Dryer With Activated Carbon Stage - K4/16DA3-G115DM

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

KA-MT 1-8 Series Compressed Air Adsorption Dryer With Activated Carbon Stage - K4/16DA3-G115DM

Compact, heatless compressed air adsorption dryers with oil vapour removal for industrial requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options available).
Availability:
Backordered
SKU K4/16DA3-G115DM
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Electrical Requirements115V 1ph 50/60HzOptional AccessoriesNone
Flow Rate35 m³/h @7 barg (21 cfm @102 psig)Port Size¼ inch
Specifications MetPED 2014/68/EU Fluid Group IIConnection TypeBSPP
Ingress Protection RatingIP65 Indoor and Frost Free Installation OnlyTechnologyFiltration
Product TypeCompressed Air DryerAmbient Temperature50.0 °C Maximum
Height1078.0DivisionGas Separation and Filtration Division EMEA
Operating Pressure4 to 16Noise Level65 to 86
Depth210.0ApplicationCompressed Air Applications
Operating Temperature5 to 50Width577.0
IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalISO GradeStandard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1
Product StyleHeatless with Activated Carbon StageBrandPARKER
DivisionGas Separation and Filtration Division EMEAWeight35
Product SeriesKA-MT 1-8Pressure Dew PointStandard: -40°C (-40°F)<br/>
