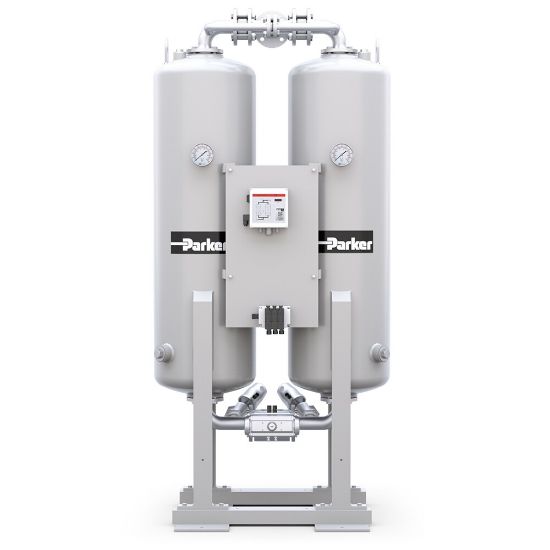

Picture of KE-MT Series Large Flow Heatless Compressed Air Dryer - K200/10D1-F230MT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

KE-MT Series Large Flow Heatless Compressed Air Dryer - K200/10D1-F230MT

Large flow heatless compressed air dryers with available flow rates up to 6100m³/h @ 7 barg and pressure dew points of -25°C to -70°C, for industrial compressed air treatment applications.
Availability:
Backordered
SKU K200/10D1-F230MT
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pre-Installed Optional AccessoriesDew Point SensorMaximum Flow Rate (m³/h)2000 @ 7 barg / PDP -25°C
Width1350 mmCompatible After FilterOIL-X AOPX055I
Maximum Operating Pressure10 bargMaximum Flow Rate1177 CFM at 101 psig, PDP -13°F
Power Consumption7.2 VAMinimum Operating Temperature77 °F
Controller TypeMultitronicCompatible PrefilterOIL-X AOPX055I and AAPX055I
Height2160 mmProduct TypeHeatless
Electrical Requirements230V, 50-60HzDepth990 mm
Port SizeDN65Maximum Operating Temperature122 °F
Minimum Ambient Temperature1.5 °CBrandPARKER
Minimum Operating Pressure5 bargIngress Protection Rating54
Pressure Dew Point-13 to -97 °FDivisionGas Separation and Filtration Division EMEA
Specifications MetPED 97/23/EG Module D+B Category II, others on requestWeight955 kg
Maximum Ambient Temperature50 °CConnection TypeFlanged according to EN1092-1
