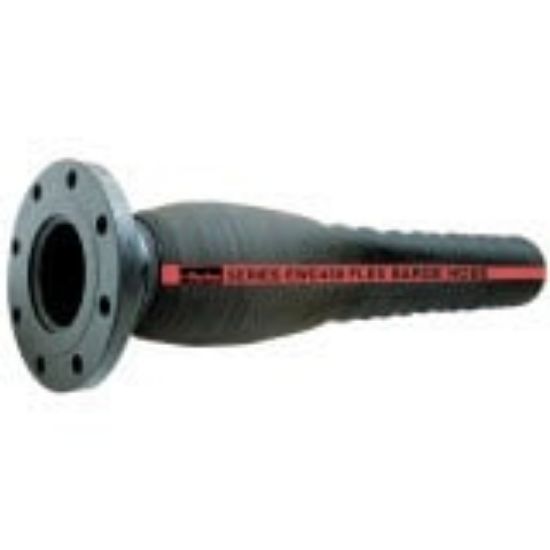

Picture of Large Diameter Custom Made Heavy Duty Petroleum Service Corrugated Dock Hose, Series EWC439 - EWC439-8000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Large Diameter Custom Made Heavy Duty Petroleum Service Corrugated Dock Hose, Series EWC439 - EWC439-8000

Note: This product is no longer available - please contact us for further assistance.
Availability:
Backordered
SKU EWC439-8000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)8Maximum Operating Temperature180
Outside Diameter9.406Minimum Operating Temperature-40
Vacuum Pressure RatingFullMinimum Bend Radius38
Cover ColorBlackInside Diameter8
DivisionHose Products DivisionMaximum Length50
Tube MaterialNitrileCover MaterialSynthetic Rubber
MediaFuels (Oil & Fuel with aromatic content not exceeding 50%)Hose Inner Tube MaterialBlack
ApplicationDockCover StructureCorrugated
Maximum Operating Pressure225Package TypeCoil
Hose Reinforcement Material6 Plies of Tire Cord with Dual Wire HelixWeight12.3
