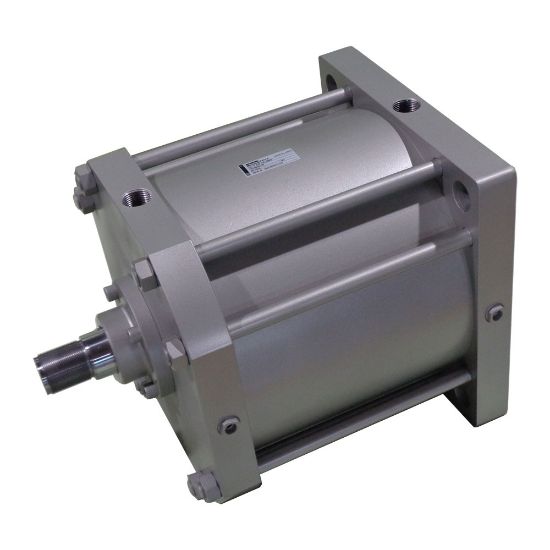

Picture of Large Pneumatic Cylinder Model:7AL-3 - 7AL-3-SKU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Large Pneumatic Cylinder Model:7AL-3 - 7AL-3-SKU

10 bar Large Bore Pneumatic Cylinder 7AL-3 series equipped with wear resistant resin wear ring on the piston. A durable iron body is used, and 4 types of cylinder bore are available: φ280, φ320, φ360, and φ400.
Availability:
Backordered
SKU 7AL-3-SKU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Mounting StyleLB,FA,FB,CA,TCCushioning Stroke (mm)25(φ280-320, Cushion ring length) , 30 (Cushion ring length, φ360-400)
Rod End StylesRod eye(T-end),Rod clevis(Y-end)with pinPressure Range (MPa)0.1-1.0
LubricationNecessary(JIS K 2213 Class 1(additive-free turbine oil ISO VG32) or its equivalent)Bore Diameter (mm)280, 320, 360, 400
Temperature Range (C)-10-+70(No freezing)Cushioning TypeWith cushions on both ends
Screw ToleranceJIS 6g/6HBellows MaterialStandard：Nylon tarpaulin Semi-standard：Chloroprene,Conex
Stroke Length Tolerance (mm)0-+0.8(0-100), 0-+1.0(101-250), 0-+1.25(251-630), 0-+1.4(63-1000), 0-+1.6(1001-1600), 0-+1.8(1601-2000)Related PartsLock nut
Proof Pressure (MPa)50-700Speed Range1.6mm/s
Fluid TypeAirDivisionTAIYO Division
