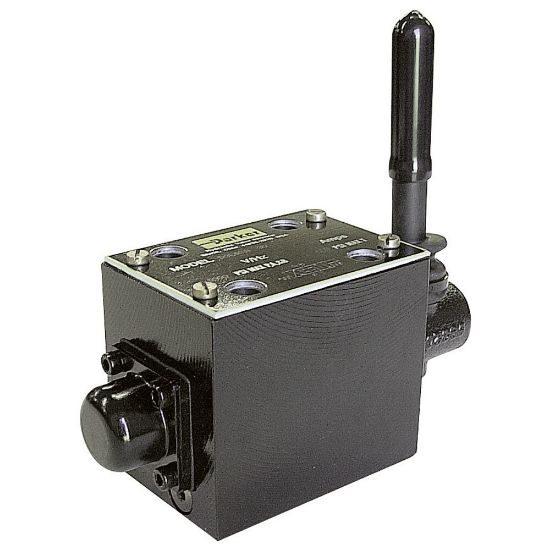

Lever Operated Directional Control Valve - D3L, D3LB Series - D3L1EV

Name: Lever Operated Directional Control Valve - D3L, D3LB Series - D3L1EV
SKU: D3L1EV

Parker’s D3L directional control valves are high performance, 5-chamber, direct operated, lever controlled, 4-way valves.

Availability:

Backordered

SKU D3L1EV

POR

Qty:

Products specifications

Attribute name	Attribute value
Mounting Type	Subplate	Maximum Flow Rate	Up to 40 GPM depending on spool
Maximum Operating Pressure	5000 PSI	Size	NFPA D05, CETOP 5, NG 10
Valve Type	Lever Operated Directional Control Valve	Options	n/a
Minimum Operating Temperature	-4	Division	Hydraulic Valve Systems Division
Maximum Operating Temperature	140	Maximum Flow Rate	40
Mounting Type	Subplate	Size	NFPA D05
Actuation Type	Hydraulic Pressure	Maximum Operating Pressure	5000
Spool Code	4-Way	Weight	8
Spool Position	2-Position	Body Material	Gray Iron
Seal Material	Fluorocarbon

Product resources

Literature and Reference Materials

Lever Operated Directional Control Valve Catalog - D3L, D3LB Series (PDF)
