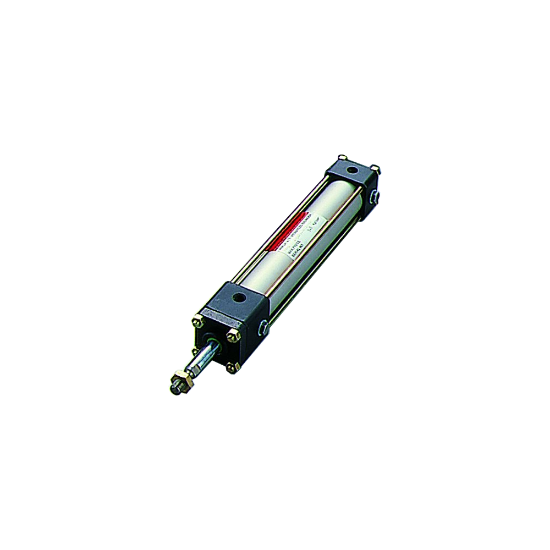

Picture of Low-Pressure Hydraulic Cylinder Model:10H-2 - 10H-2-SKU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low-Pressure Hydraulic Cylinder Model:10H-2 - 10H-2-SKU

1MPa specification low pressure hydraulic cylinder 10H-2 series. The bore size is φ32 to φ250. This cylinder is ideal for combination with an air oil unit.
Availability:
Backordered
SKU 10H-2-SKU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Mounting StyleSD, LB, FA, FB, CA, CC, CB, CD, TA, TCCushioning TypeNone Use the piston contact speed 50mm/s or less with end cover.
Screw ToleranceJIS 6g/6HRelated PartsCD,TA,TC：bracket
Rod End StylesRod eye(T-end),Rod eye(S-end),Rod clevis(Y-end)with pin, Floating jointFluid TypePetroleum based fluid
Bore Diameter (mm)32, 40, 50, 63, 80, 100, 125, 140, 160, 180, 200, 250Temperature Range (C)-10-+80(No freezing)
Maximum Working Pressure (MPa)1Bellows MaterialNylon tarpaulin(Standard), Chloroprene(Semi-standard),Conex(Semi-standard)
Speed Range8-300mm/sProof Pressure1.5
Minimum Operating Pressure (MPa)0.1Stroke Length Tolerance (mm)0-+1.0(0-250mm), 0-+1.4(251-1000mm), 0-+1.8(1001-2000mm)
DivisionTAIYO Division
