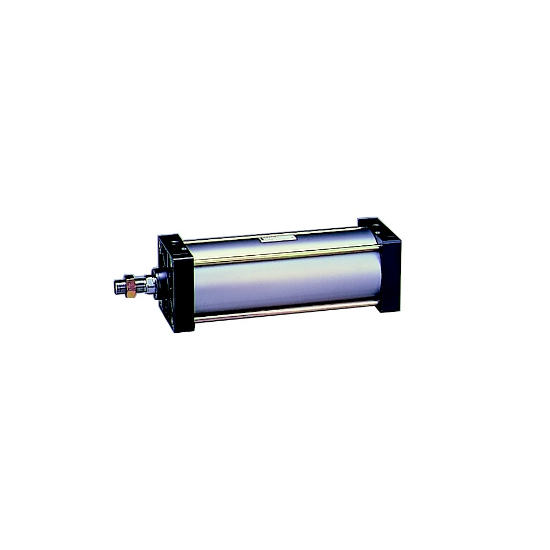

Picture of Low-Pressure Hydraulic Cylinder Model:10H-6 - 10H-6-SKU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low-Pressure Hydraulic Cylinder Model:10H-6 - 10H-6-SKU

1MPa specification low pressure hydraulic cylinder 10H-6 series. The bore size is φ32 to φ100. This cylinder is ideal for combination with an air oil unit. ISO 6430 standard
Availability:
Backordered
SKU 10H-6-SKU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cushioning TypeNoneRelated PartsCD,TA,TC：bracket
Bellows MaterialNylon tarpaulin(Standard), Chloroprene(Semi-standard), Conex(Semi-standard)Temperature Range (C)-10-+70(No freezing)
Proof Pressure1.5Speed Range1-150mm/s
Bore Diameter (mm)32, 40, 50, 63, 80, 100Screw ToleranceJIS 6g/6H
Mounting StyleSD, LA, LB, FA, FB, CA, CB, CC, TCStroke Length Tolerance (mm)0-250:0-+1.0 251-1000:0-+1.5 1001-1500:0-+2.0
Rod End StylesRod eye(T-end),Rod eye(S-end),Rod clevis(Y-end)with pin, Floating jointPressure Range (MPa)0.2-1.0
Fluid TypePetroleum based fluidDivisionTAIYO Division
