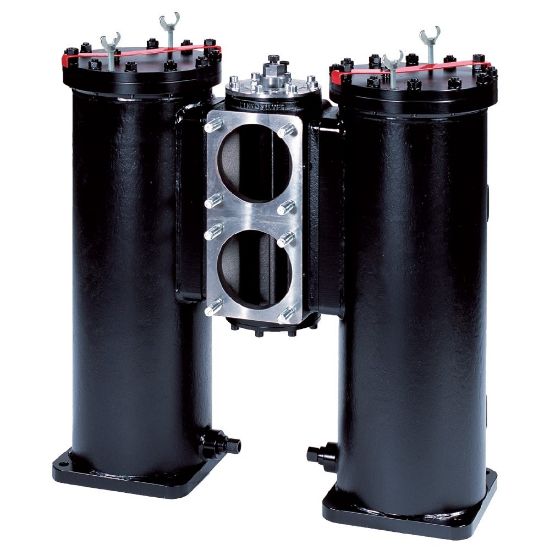

Picture of Low Pressure In-Line Duplex Filter - DF2070 Series - DF2070220QVM3HX1601

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure In-Line Duplex Filter - DF2070 Series - DF2070220QVM3HX1601

The DF2070 is a series of low pressure, high flow duplex filters for heavy fuel oil and lube system applications.
Suitable for flows up to 1800 l/min and pressures up to 10 bar.
Availability:
Backordered
SKU DF2070220QVM3HX1601
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Element20Q Microglass *Indicator TypeVisual *
Flow Capacity (l/min)1500 *Operating Temperature-20 to 120
Bypass Valve Pressure Rating2OptionsWith bypass
Mounting TypeInlineHousing MaterialSteel/Cast iron
Flow Rate1500Port Type160 mm Square flange & Blind counter flange
Pressure Rating10Seal MaterialFluorelastomer
DivisionHydraulic & Industrial Process Filtration Division EMEA
