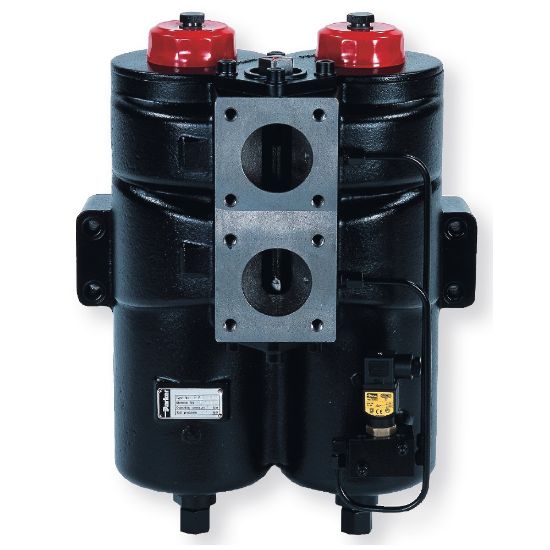

Picture of Low Pressure In-Line Duplex Filter - DF2089 Series - DF2089110QVPHX603

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure In-Line Duplex Filter - DF2089 Series - DF2089110QVPHX603

The DF2089 duplex filter is a cast iron duplex filter for Heavy duty duplex operation applications. Suitable for flows up to 350 l/min and pressures up to 30 bar.
Availability:
Backordered
SKU DF2089110QVPHX603
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Housing MaterialCast ironMicron Rating10 µm
Indicator Pressure SettingNo indicatorMounting TypeInline
Seal MaterialFluorelastomerOptionsWith bypass, with magnet
Indicator TypeIndicator block pluggedFlow Rate0 to 230 l/min
Bypass Valve Pressure Rating2.0 barOperating Pressure30 bar
Filter Element Type10Q MicroglassConnection Type60 mm Square flange & Blind counter flange
Housing MaterialCast ironSeal MaterialFluorelastomer
DivisionHydraulic & Industrial Process Filtration Division EMEAOperating Temperature-20 to 120 °C
Pressure Rating30 barMounting TypeInline
Flow Rate350 L/min
