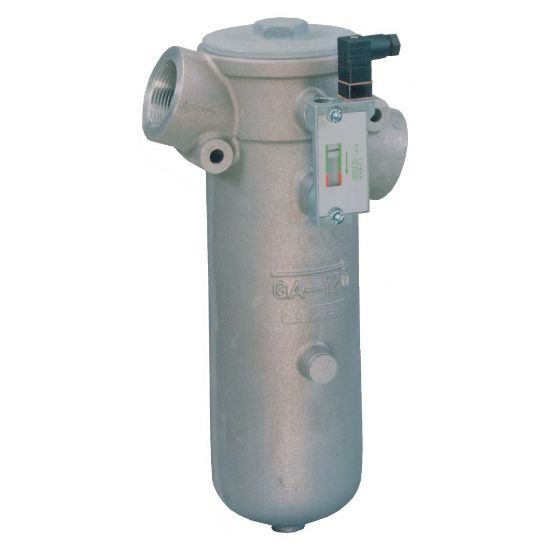

Picture of Low Pressure In-Line Filter - GA Series - GA005QBD3EG122

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure In-Line Filter - GA Series - GA005QBD3EG122

The In-line GA series low pressure filters feature magnetic pre-filtration and a wide range of filter media. A light weight aluminium housing design, with maximum flow rate of 320 l/min and a maximum pressure of 30 bar.
Availability:
Backordered
SKU GA005QBD3EG122
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron RatingNo elementFlow Rate0 to 70 l/min
Filter Element TypeNo elementFor Use WithGA 1-30
Seal MaterialNitrileConnection TypeG¾
Indicator TypeVisual on right side, left side pluggedIndicator Pressure Setting1.2 bar
Bypass Valve Pressure Rating1.5 barOptionsWith magnets
DivisionHydraulic & Industrial Process Filtration Division EMEAOperating Temperature-40 to 100
Housing MaterialAluminiumMounting TypeInline
Pressure Rating30
Product resources

Literature and Reference Materials
