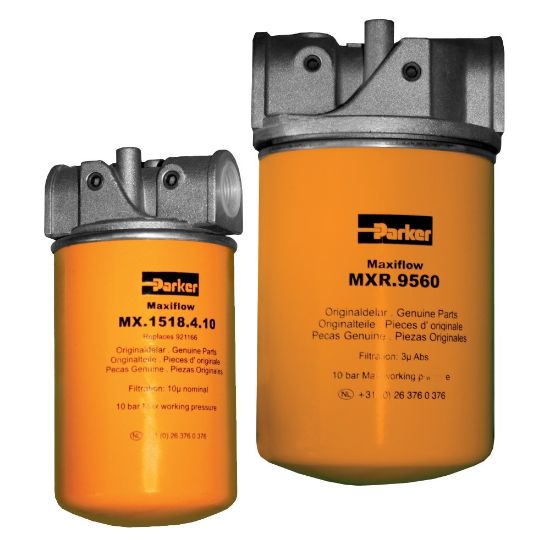

Low Pressure In-Line Spin-On Filter - Maxiflow Series - MXA1210QBG2XG121

Name: Low Pressure In-Line Spin-On Filter - Maxiflow Series - MXA1210QBG2XG121
SKU: MXA1210QBG2XG121

The Maxiflow Series is a range of spin-on filters designed to provide low cost quality protection for hydraulic or lubrication systems.
Maximum pressure 10 bar. Maximum flow 360 l/min.

Availability:

Backordered

SKU MXA1210QBG2XG121

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Connection Type	G¾
Filter Element Type	10Q Microglass	Bypass Valve Pressure Rating	Blocked
Micron Rating	10 µm	Indicator Type	Visual
Flow Rate	0 to 50 l/min	Options	Standard
Indicator Pressure Setting	1.2	Product Series	Maxiflow
Product Style	Inline Spin-On Filter	Brand	PARKER
Operating Pressure	10	Industry	Agriculture
Mounting Type	Inline	Division	Hydraulic & Industrial Process Filtration Division EMEA
Housing Material	Aluminium	Materials of Construction	Housing: Aluminium
Technology	Hydraulics	Flow Rate	up to 360
For Fluid Type	Hydraulic Oils	Product Type	Hydraulic Filter
Application	Telescopic Handlers	Operating Temperature	-30 to 100
Division	Hydraulic & Industrial Process Filtration Division EMEA
