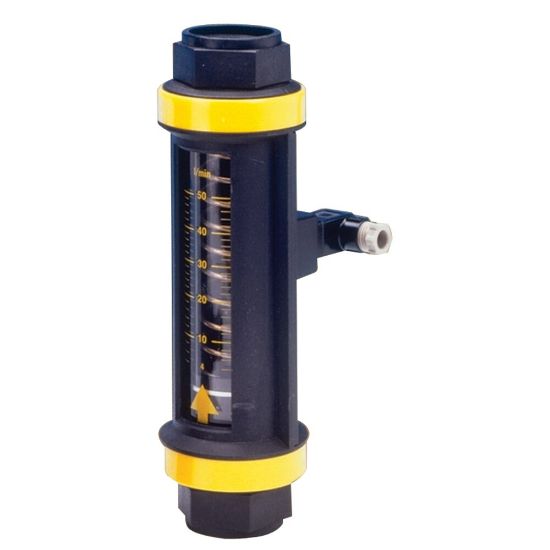

Low Pressure Mechanical Flowmeter – Easiflow - EF7731110220

Name: Low Pressure Mechanical Flowmeter – Easiflow - EF7731110220
SKU: EF7731110220

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Availability:

Backordered

SKU EF7731110220

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	1 to 15 l/min	Switch Type	No Switch
For Fluid Type	Water	Brand	PARKER
Technology	Filtration	Port Size	1 inch
Seal Material	Nitrile	Ingress Protection Rating	N/A
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
For Fluid Type	Water	Product Style	Flow Meter
Port Type	BSP	Product Type	Condition Monitor
Communication Interface	n/a	Operating Humidity	n/a
ATEX Specifications Met	n/a	Industry	Industrial & Chemical Processing
Width	60 mm	Length	196 mm
Operating Pressure	145 psi	Specifications Met	Pressure Directive
Diameter	60 mm	Operating Temperature	5 to 80 °C
Body Material	Glass Filled Nylon	Materials of Construction	Borosilicate Glass
Height	60 mm	Flow Rate	1 to 15 L/min
Accuracy	+/- 5% FSD	Cycle Time	n/a
Signal Output	n/a	Sensing Method	Variable Oriface Flowmeter
Electrical Requirements	n/a	Maximum Fluid Temperature	+80 °C
Minimum Fluid Temperature	+5 °C

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
