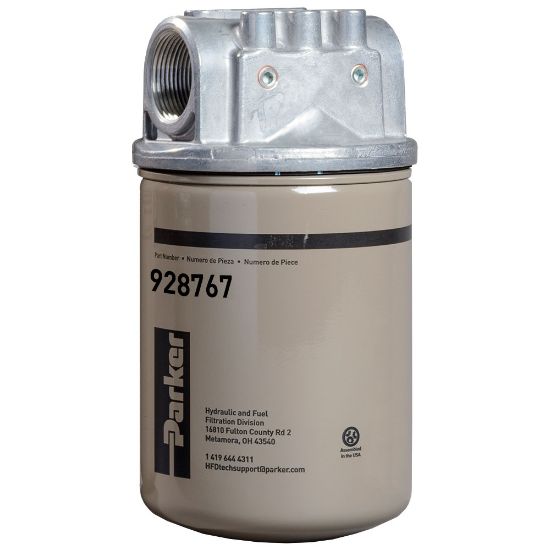

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 50AT120BBPGN20N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 50AT120BBPGN20N

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 50AT120BBPGN20N
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileOptionsNone
Indicator TypeSold separatelyBypass Valve (psi)25
Filter Element20 micron microglassFlow Rate (gpm)36
Port Connection Type1-1/4" NPT portsMounting TypeInline
Seal MaterialNitrileDivisionEngine Mobile Hydraulic and Fuel Filtration Division
OptionsNoneMaximum Operating Temperature225
Filter Element TypeCanisterFor Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Flow Rate36Indicator TypeSold separately
Pressure Rating10.3Housing MaterialLow Carbon Steel
Indicator Pressure Setting20Bypass Valve Pressure Rating25
Weight1.77Port Type1-1/4" NPT ports
Compatible Element928767
