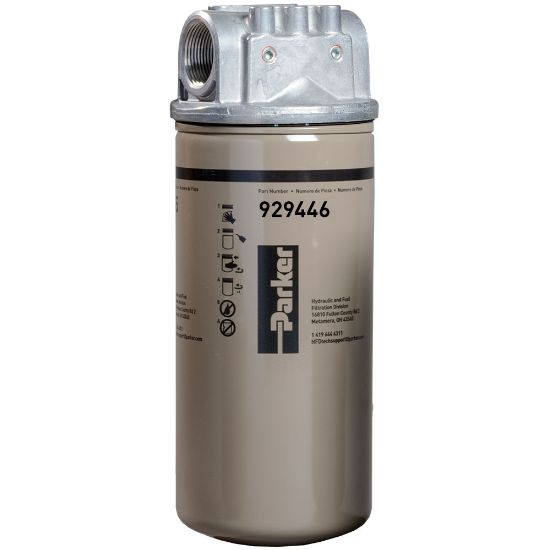

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 50AT220BBPPN20H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 50AT220BBPPN20H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 50AT220BBPPN20H
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileOptionsInlet & Outlet, both sides (all ports drilled & tapped)
Indicator TypeSold separatelyBypass Valve (psi)3
Filter Element20 micron microglassPort Connection Type1-1/4" NPT ports
Flow Rate (gpm)7Mounting TypeInline
Seal MaterialNitrileDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature225Filter Element TypeCanister
For Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.OptionsInlet & Outlet, both sides (all ports drilled & tapped)
Indicator TypeSold separatelyPressure Rating150
Housing MaterialLow Carbon SteelIndicator Pressure Setting0.17
Bypass Valve Pressure Rating0.2 barFlow Rate22
Port Type1-1/4" NPT portsWeight2.18
Compatible Element929446
