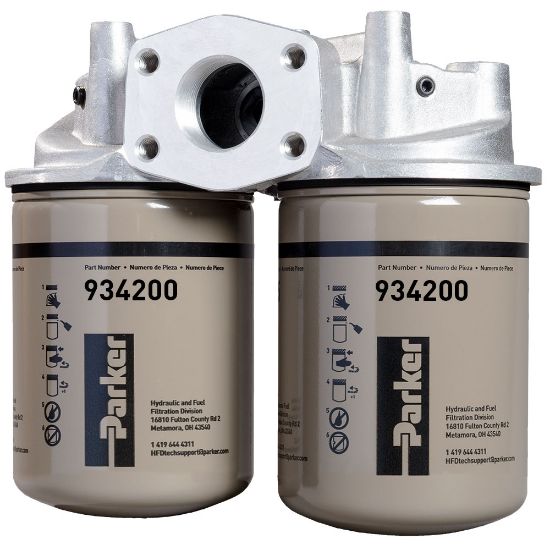

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 80AT103BBPGY32H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 80AT103BBPGY32H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 80AT103BBPGY32H
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Bypass Valve (psi)25 psid bypassOptionsInlet & Outlet, both sides (all ports drilled & tapped)
Seal MaterialNitrilePort Connection Type2" SAE Code 61 Flange / 1-1/2" NPT ports
Filter Element3 micron microglassIndicator TypeSold separately
Flow Rate (gpm)72Indicator Pressure Setting1.4
Flow Rate72Maximum Operating Temperature107
Compatible Element934200Housing MaterialLow Carbon Steel
OptionsInlet & Outlet, both sides (all ports drilled & tapped)Weight11.3
Pressure Rating150Mounting TypeInline
Bypass Valve Pressure Rating25 psidFor Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionFilter Element TypeCanister
Seal MaterialNitrilePort Type2" SAE Code 61 Flange / 1-1/2" NPT ports
Indicator TypeSold separately
