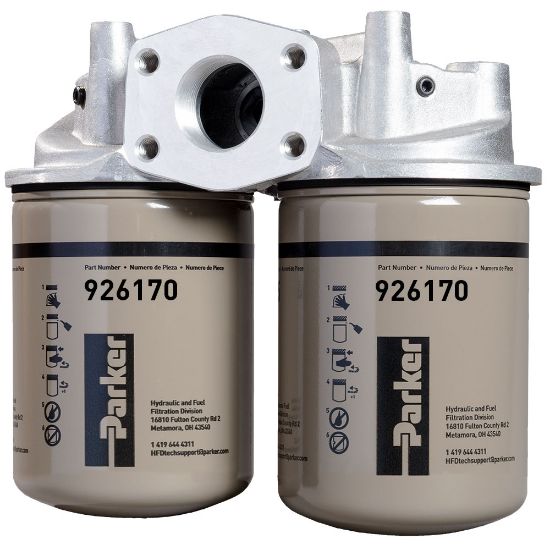

Low Pressure Spin-On Filters 12AT/50AT Series - 80AT125CBPGY32H

Name: Low Pressure Spin-On Filters 12AT/50AT Series - 80AT125CBPGY32H
SKU: 80AT125CBPGY32H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:

Backordered

SKU 80AT125CBPGY32H

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Seal Material	Nitrile
Indicator Type	Sold separately	Filter Element	25 micron cellulose
Bypass Valve (psi)	25 psid bypass	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Flow Rate (gpm)	72	Mounting Type	Inline
Bypass Valve Pressure Rating	1.7 bar	Maximum Operating Temperature	107
Flow Rate	272	Indicator Pressure Setting	20
Seal Material	Nitrile	Weight	11.3
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Pressure Rating	10.3	Filter Element Type	Canister
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.	Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
Indicator Type	Sold separately	Compatible Element	926170
Housing Material	Low Carbon Steel
