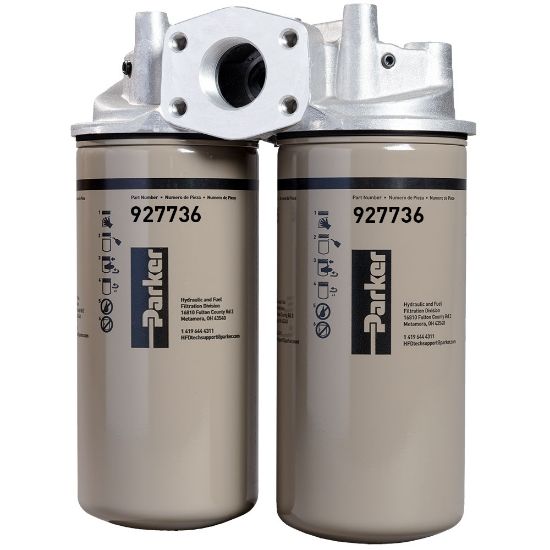

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 80AT210CBPGY32H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 80AT210CBPGY32H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 80AT210CBPGY32H
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileIndicator TypeSold separately
Bypass Valve (psi)25 psid bypassOptionsInlet & Outlet, both sides (all ports drilled & tapped)
Filter Element10 micron celluloseFlow Rate (gpm)80
Port Connection Type2" SAE Code 61 Flange / 1-1/2" NPT portsPort Type2" SAE Code 61 Flange / 1-1/2" NPT ports
Seal MaterialNitrileOptionsInlet & Outlet, both sides (all ports drilled & tapped)
Compatible Element927736DivisionEngine Mobile Hydraulic and Fuel Filtration Division
Filter Element TypeCanisterFor Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Housing MaterialLow Carbon SteelIndicator TypeSold separately
Weight13Mounting TypeInline
Flow Rate80Pressure Rating150
Bypass Valve Pressure Rating1.7 barMaximum Operating Temperature225
Indicator Pressure Setting1.4
