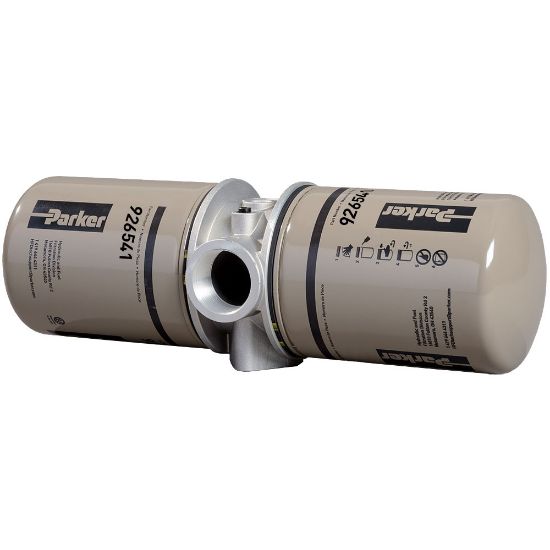

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 80UT103CBPGN24H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 80UT103CBPGN24H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 80UT103CBPGN24H
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileOptionsInlet & Outlet, both sides (all ports drilled & tapped)
Filter Element3 micron celluloseIndicator TypeSold separately
Flow Rate (gpm)72Bypass Valve (psi)25 psid bypass
Port Connection Type1-1/2" NPT portsMounting TypeInline
Seal MaterialNitrileDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature225Filter Element Type3 micron cellulose
For Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.OptionsInlet & Outlet, both sides (all ports drilled & tapped)
Indicator TypeSold separatelyPressure Rating150
Housing MaterialLow Carbon SteelIndicator Pressure Setting20
Bypass Valve Pressure Rating25Compatible Element926541
Flow Rate272Weight6.9
Port Type1-1/2" NPT ports
