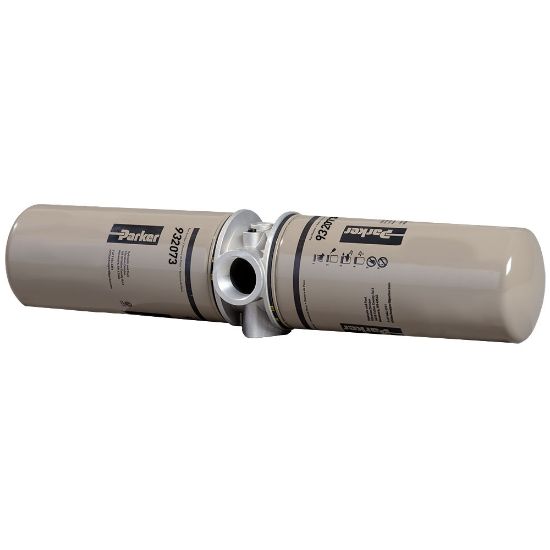

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 80UT203BBPGN24H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 80UT203BBPGN24H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 80UT203BBPGN24H
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileOptionsInlet & Outlet, both sides (all ports drilled & tapped)
Indicator TypeSold separatelyFilter Element3 micron microglass
Flow Rate (gpm)80Bypass Valve (psi)25 psid bypass
Port Connection Type1-1/2" NPT portsMounting TypeInline
Seal MaterialNitrileDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature225Filter Element TypeCanister
For Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.OptionsInlet & Outlet, both sides (all ports drilled & tapped)
Indicator TypeSold separatelyPressure Rating10.3
Housing MaterialLow Carbon SteelIndicator Pressure Setting1.4
Flow Rate80Weight3.9
Compatible Element932073Bypass Valve Pressure Rating25 psid
Port Type1-1/2" NPT ports
Product resources

Literature and Reference Materials
