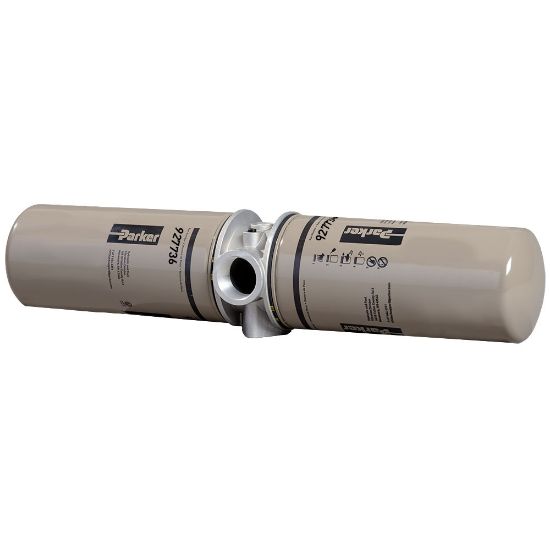

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 80UT210CBPGN24H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 80UT210CBPGN24H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 80UT210CBPGN24H
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileOptionsInlet & Outlet, both sides (all ports drilled & tapped)
Indicator TypeSold separatelyFilter Element10 micron cellulose
Flow Rate (gpm)80Bypass Valve (psi)25 psid bypass
Port Connection Type1-1/2" NPT portsMounting TypeInline
Seal MaterialNitrileDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature225For Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
OptionsInlet & Outlet, both sides (all ports drilled & tapped)Indicator TypeSold separately
Pressure Rating150Housing MaterialLow Carbon Steel
Indicator Pressure Setting1.4Filter Element Type10 micron cellulose
Flow Rate80Weight3.9
Compatible Element927736Bypass Valve Pressure Rating25 psid
Port Type1-1/2" NPT ports
