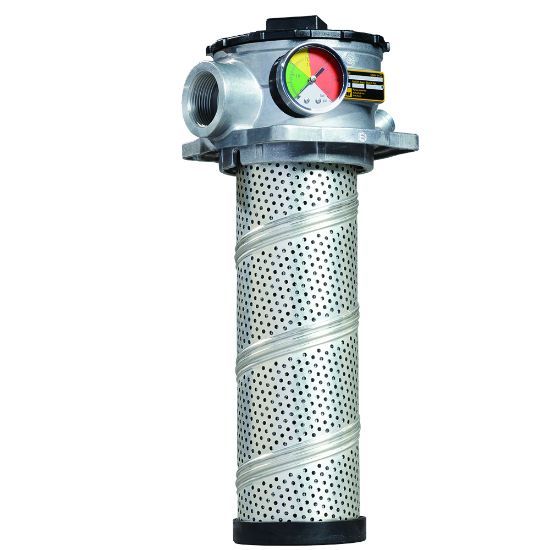

Low Pressure Tank Top Filters GLF Series - GLF2102QBGI2S241

Name: Low Pressure Tank Top Filters GLF Series - GLF2102QBGI2S241
SKU: GLF2102QBGI2S241

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:

Backordered

SKU GLF2102QBGI2S241

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Filter Element	02Q Microglass
Options	None	Bypass Valve (psi)	35
Flow Rate (gpm)	55	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual SAE-24	Seal Material	Nitrile
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Options	None	Filter Element Type	02Q Microglass
Mounting Type	Tank Mounted	Maximum Operating Temperature	225 °F
Weight	4 lb	Pressure Rating	150 psi
Bypass Valve Pressure Rating	35 psi	Flow Rate	70 Gal/min
Indicator Type	Tri-color Pressure Gauge	Housing Material	Cast Aluminum Alloy
Port Type	Dual SAE-24	Compatible Element	946431Q
Indicator Pressure Setting	1.9 bar
