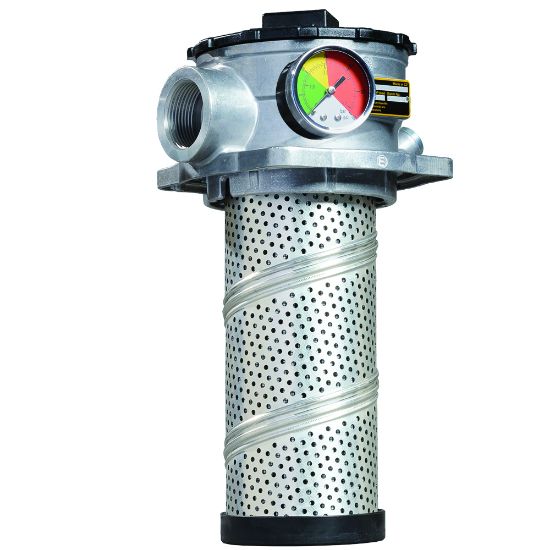

Low Pressure Tank Top Filters GLF Series - GLF2102QBGIS161

Name: Low Pressure Tank Top Filters GLF Series - GLF2102QBGIS161
SKU: GLF2102QBGIS161

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:

Backordered

SKU GLF2102QBGIS161

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Filter Element	02Q Microglass
Options	None	Port Connection Type	SAE-16
Bypass Valve (psi)	35	Flow Rate (gpm)	55
Indicator Type	Tri-color Pressure Gauge	Seal Material	Nitrile
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Options	None	Filter Element Type	02Q Microglass
Maximum Operating Temperature	107 °C	Mounting Type	Tank Mounted
Port Type	SAE-16	Weight	4 lb
Pressure Rating	150 psi	Bypass Valve Pressure Rating	2.4 bar
Indicator Type	Tri-color Pressure Gauge	Housing Material	Cast Aluminum Alloy
Flow Rate	55 Gal/min	Compatible Element	946431Q
Indicator Pressure Setting	28 psi
