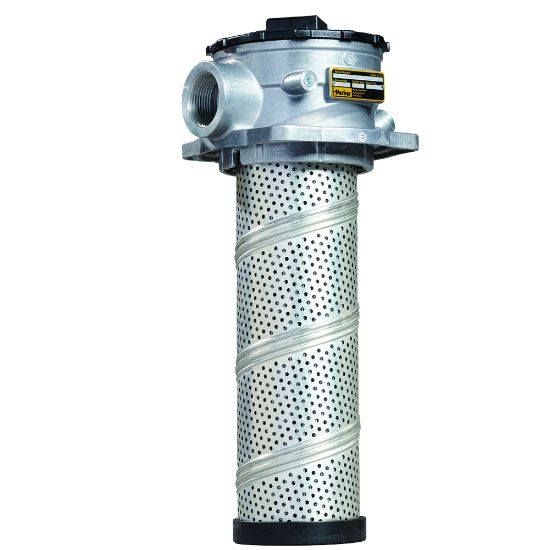

Picture of Low Pressure Tank Top Filters GLF Series - GLF2102QBPI2S241

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters GLF Series - GLF2102QBPI2S241

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.
Availability:
Backordered
SKU GLF2102QBPI2S241
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileFilter Element02Q Microglass
OptionsNoneIndicator TypePort plugged
Bypass Valve (psi)35Flow Rate (gpm)55
Port Connection TypeDual SAE-24Seal MaterialNitrile
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsDivisionEngine Mobile Hydraulic and Fuel Filtration Division
OptionsNoneFilter Element Type02Q Microglass
Mounting TypeTank MountedMaximum Operating Temperature225
Pressure Rating150Indicator TypePort Plugged
Weight4Flow Rate265
Bypass Valve Pressure Rating35Housing MaterialCast Aluminum Alloy
Port TypeDual SAE-24Compatible Element946431Q
Indicator Pressure Setting28
Product resources

Literature and Reference Materials
