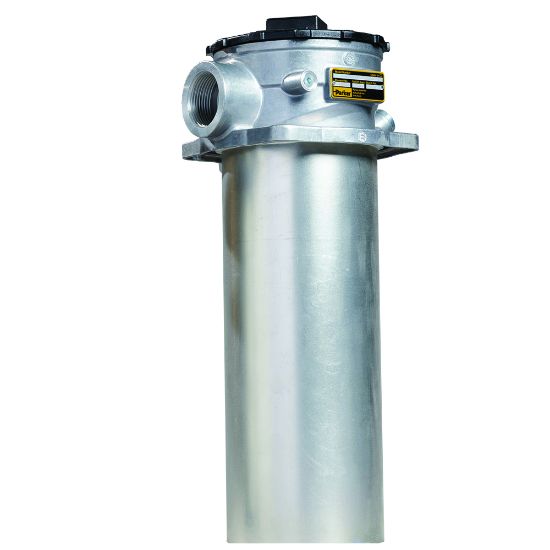

Picture of Low Pressure Tank Top Filters GLF Series - GLF2102QBPI2S24D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters GLF Series - GLF2102QBPI2S24D

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.
Availability:
Backordered
SKU GLF2102QBPI2S24D
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileFilter Element02Q Microglass
Indicator TypePort pluggedBypass Valve (psi)35
Flow Rate (gpm)55OptionsDrop Tube
Port Connection TypeDual SAE-24Seal MaterialNitrile
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type02Q MicroglassMounting TypeTank Mounted
Maximum Operating Temperature225Pressure Rating150
Indicator TypePort PluggedWeight4
Flow Rate265Bypass Valve Pressure Rating35
Housing MaterialCast Aluminum AlloyOptionsDrop Tube
Port TypeDual SAE-24Compatible Element946431Q
Indicator Pressure Setting28
