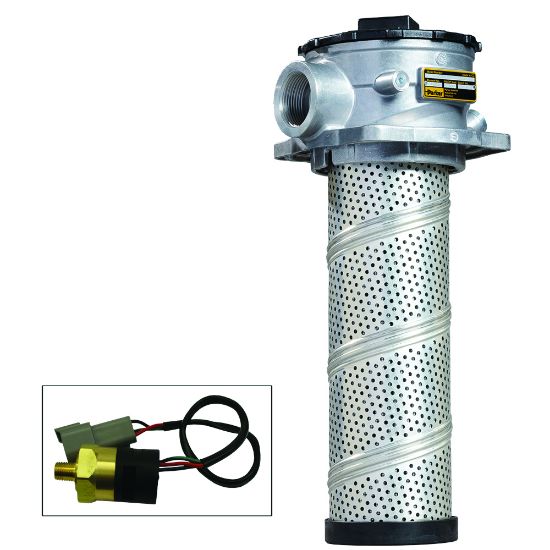

Picture of Low Pressure Tank Top Filters GLF Series - GLF2102QVSI2S241

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters GLF Series - GLF2102QVSI2S241

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.
Availability:
Backordered
SKU GLF2102QVSI2S241
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Element02Q MicroglassOptionsNone
Seal MaterialFluorocarbonBypass Valve (psi)35
Flow Rate (gpm)55Indicator TypePressure Switch
Port Connection TypeDual SAE-24For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionOptionsNone
Seal MaterialFluorocarbonFilter Element Type02Q Microglass
Mounting TypeTank MountedMaximum Operating Temperature225
Pressure Rating150Weight4
Flow Rate265Bypass Valve Pressure Rating35
Indicator TypePressure SwitchHousing MaterialCast Aluminum Alloy
Port TypeDual SAE-24Compatible Element946456Q
Indicator Pressure Setting28
