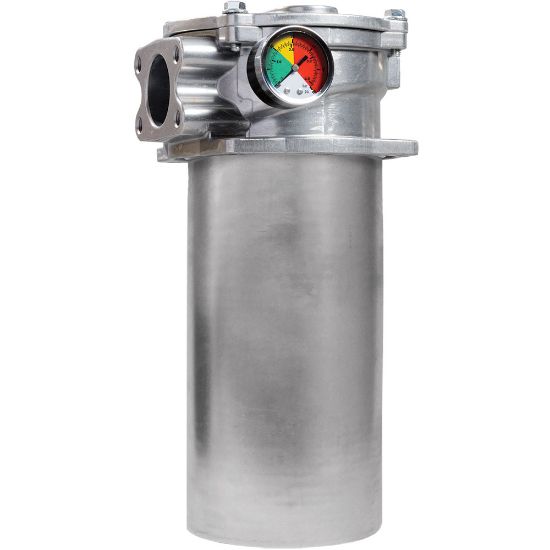

Low Pressure Tank Top Filters GLF Series - GLF3102QBGI2Y32D

Name: Low Pressure Tank Top Filters GLF Series - GLF3102QBGI2Y32D
SKU: GLF3102QBGI2Y32D

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:

Backordered

SKU GLF3102QBGI2Y32D

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Filter Element	02Q Microglass
Flow Rate (gpm)	100	Bypass Valve (psi)	35
Options	Drop Tube	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Seal Material	Nitrile
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	02Q Microglass	Maximum Operating Temperature	107 °C
Mounting Type	Tank Mounted	Weight	7 lb
Flow Rate	378 L/min	Pressure Rating	10 bar
Bypass Valve Pressure Rating	2.4 bar	Indicator Type	Tri-color Pressure Gauge
Housing Material	Cast Aluminum Alloy	Options	Drop Tube
Indicator Pressure Setting	1.9 bar	Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
Compatible Element	945894Q
