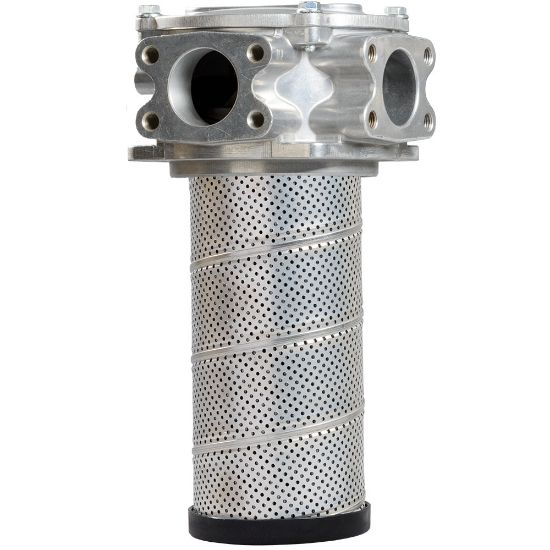

Low Pressure Tank Top Filters GLF Series - GLF3102QBGI2Y32M

Name: Low Pressure Tank Top Filters GLF Series - GLF3102QBGI2Y32M
SKU: GLF3102QBGI2Y32M

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:

Backordered

SKU GLF3102QBGI2Y32M

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Filter Element	02Q Microglass
Flow Rate (gpm)	100	Bypass Valve (psi)	35
Options	Magnets	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Seal Material	Nitrile
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Cartridge	Maximum Operating Temperature	107 °C
Mounting Type	Tank Mounted	Flow Rate	100 Gal/min
Pressure Rating	150 psi	Bypass Valve Pressure Rating	2.4 bar
Indicator Type	Tri-color Pressure Gauge	Housing Material	Cast Aluminum Alloy
Weight	3.18 kg	Options	Magnets
Indicator Pressure Setting	1.9 bar	Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
Compatible Element	945894Q
