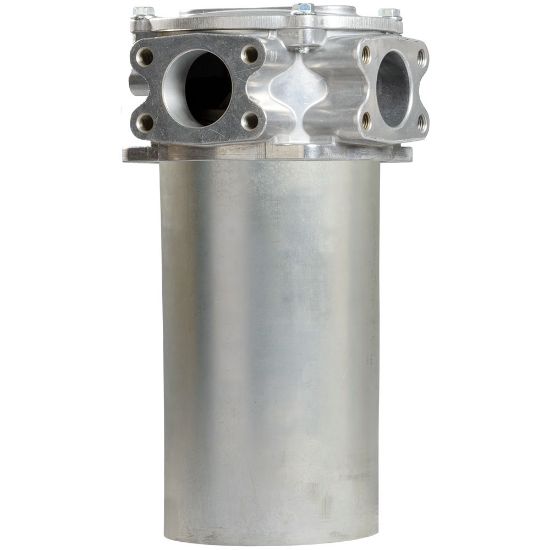

Low Pressure Tank Top Filters GLF Series - GLF3102QBSI2Y32MD

Name: Low Pressure Tank Top Filters GLF Series - GLF3102QBSI2Y32MD
SKU: GLF3102QBSI2Y32MD

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:

Backordered

SKU GLF3102QBSI2Y32MD

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Filter Element	02Q Microglass
Flow Rate (gpm)	100	Bypass Valve (psi)	35
Options	Magnets and Drop Tube	Indicator Type	Pressure Switch
Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Seal Material	Nitrile
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	02Q Microglass	Mounting Type	Tank Mounted
Maximum Operating Temperature	225	Pressure Rating	150
Weight	7	Bypass Valve Pressure Rating	35
Indicator Type	Pressure Switch	Housing Material	Cast Aluminum Alloy
Options	Magnets and Drop Tube	Indicator Pressure Setting	28
Flow Rate	378	Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
Compatible Element	945894Q
