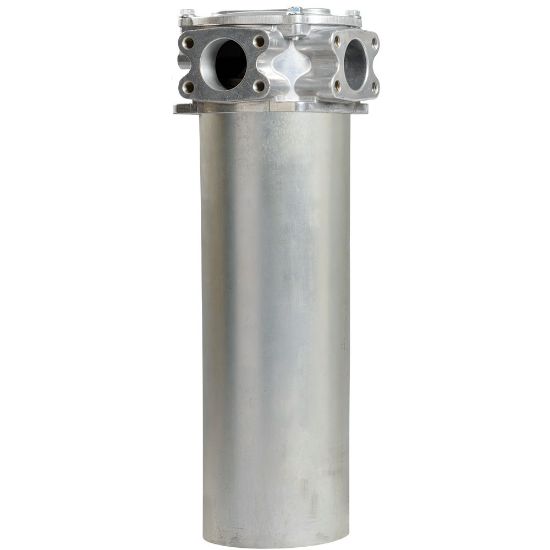

Low Pressure Tank Top Filters GLF Series - GLF3220QBPI2Y32D

Name: Low Pressure Tank Top Filters GLF Series - GLF3220QBPI2Y32D
SKU: GLF3220QBPI2Y32D

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:

Backordered

SKU GLF3220QBPI2Y32D

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Filter Element	20Q Microglass
Indicator Type	Port plugged	Bypass Valve (psi)	35
Options	Drop Tube	Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
Flow Rate (gpm)	230	Seal Material	Nitrile
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	20Q Microglass	Mounting Type	Tank Mounted
Maximum Operating Temperature	225	Pressure Rating	150
Weight	8	Indicator Type	Port Plugged
Bypass Valve Pressure Rating	35	Housing Material	Cast Aluminum Alloy
Options	Drop Tube	Indicator Pressure Setting	28
Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Flow Rate	870
Compatible Element	945901Q
